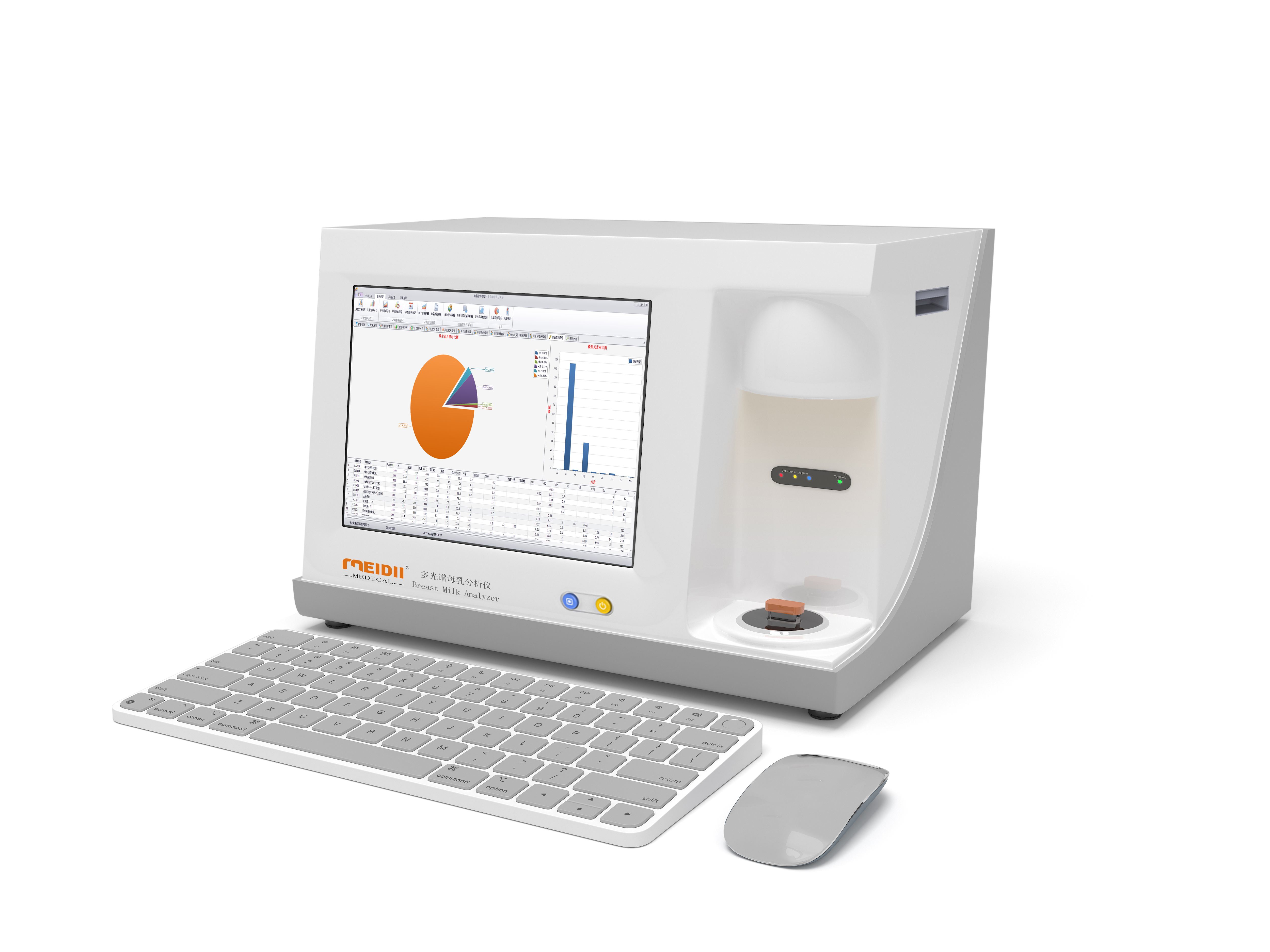

HW-5800B /(Human milk) Breast milk analyzer

Breast milk analyzers are specialized medical and laboratory equipment, such as the MEIDI human milk analyzer. They measure the macronutrient composition and energy content of breast milk. Using infrared spectroscopy, the equipment assesses levels of fat, protein, carbohydrates (lactose) and total solids, enabling clinicians to optimize nutrition for vulnerable infants.

Mid-Infrared (Mid-IR) Spectroscopy: Uses transmitted infrared energy waves targeted at specific molecular bonds (like carbonyl and amide groups) to read components without chemical reagents.

Core Advantages
✅ Small Sample Volume
Only 0.3 mL sample is sufficient to analyze fat, protein, carbohydrates, energy, moisture and other parameters.
✅ Ultra-Fast Analysis
Test results appear on the screen within 5 seconds. Data can be transmitted to a computer for report printing.
✅ Consumable Management
Disposable high-transparency sample cups are used for sample loading to prevent cross-contamination. No equipment cleaning required, and pipeline clogging is avoided, effectively extending the service life of the machine.
✅ Software System
AI-assisted diagnosis function is available as an optional upgrade.

(Human milk) Breast milk analyzerThe following reports can be provided:

(1) Breast milk test analysis report

• Test items: 7-10 test results including fat, protein, lactose, density, water, energy, total minerals
• Analysis module: Breast milk test data analysis module, child nutrition assessment, child food exchange guidance, mother's dietary nutrition analysis and nutrition guidance module
• Scope of application: colostrum, transitional milk, mature milk, late milk

Technical Parameters

Repeatability: ≤0.03%    Error: ≤0.1%

Sample Temperature: 10 – 40 ℃, error <0.1%

Report Printing: External printer, A4 report sheet

Detection Time: ≤5 seconds

Data Management: Supports multicondition search, edit, export, import, and save functions

Data Statistics: Classified statistics of milk test results based on different lactation stages, regions, ages, parities, etc. for mothers, and different months of age, genders, weights, gestational weeks, etc. for infants

Sample Volume: ≤0.3 ml

Computer Configuration: Allinone touch computer

External Ports: Can be connected to hospital LIS system; supports unlimited addition of test users; test results are saved in real time and can be reviewed at any time

Host System: Windows 10, Wi-Fi .11G/N wireless network

Input Power: ≤20 VA

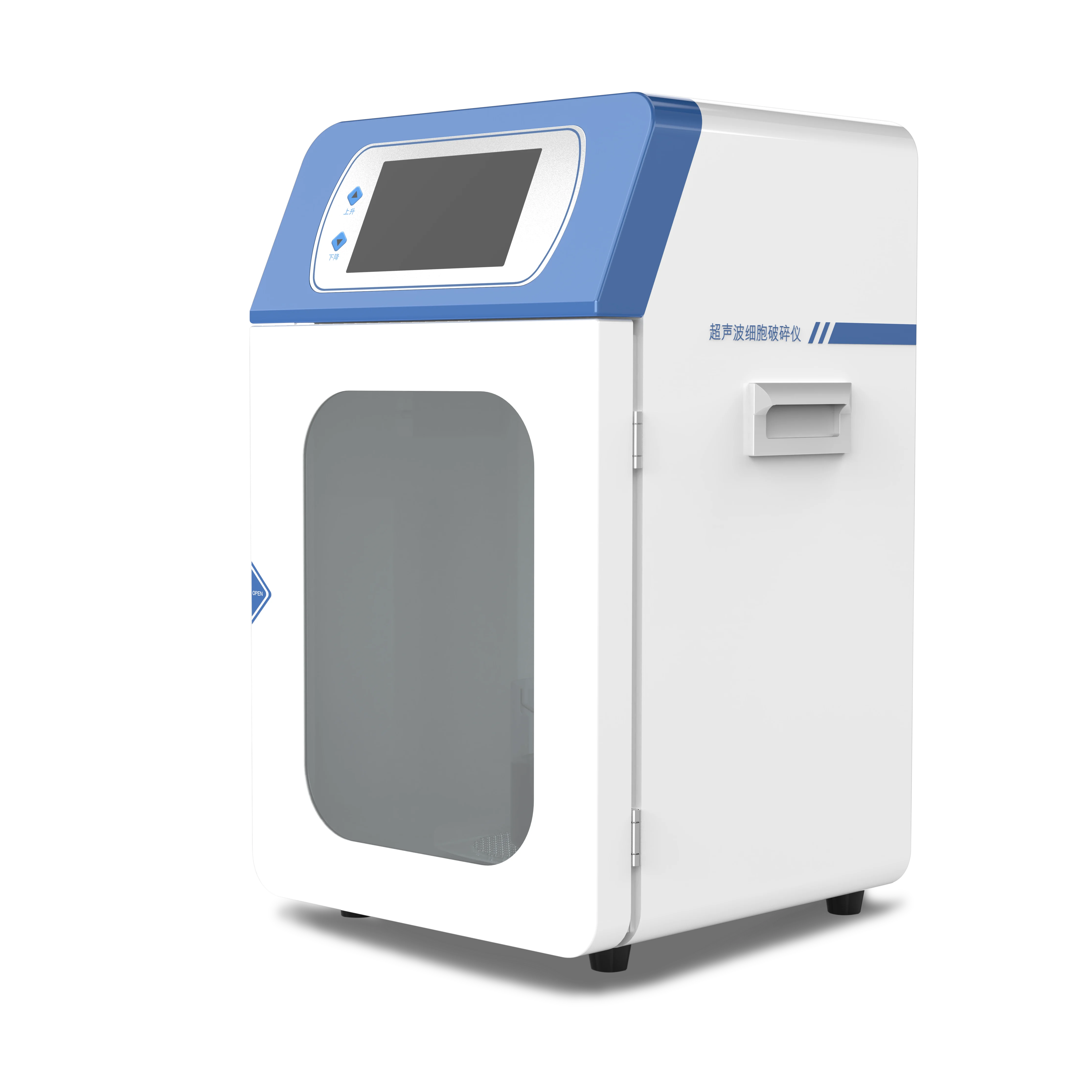

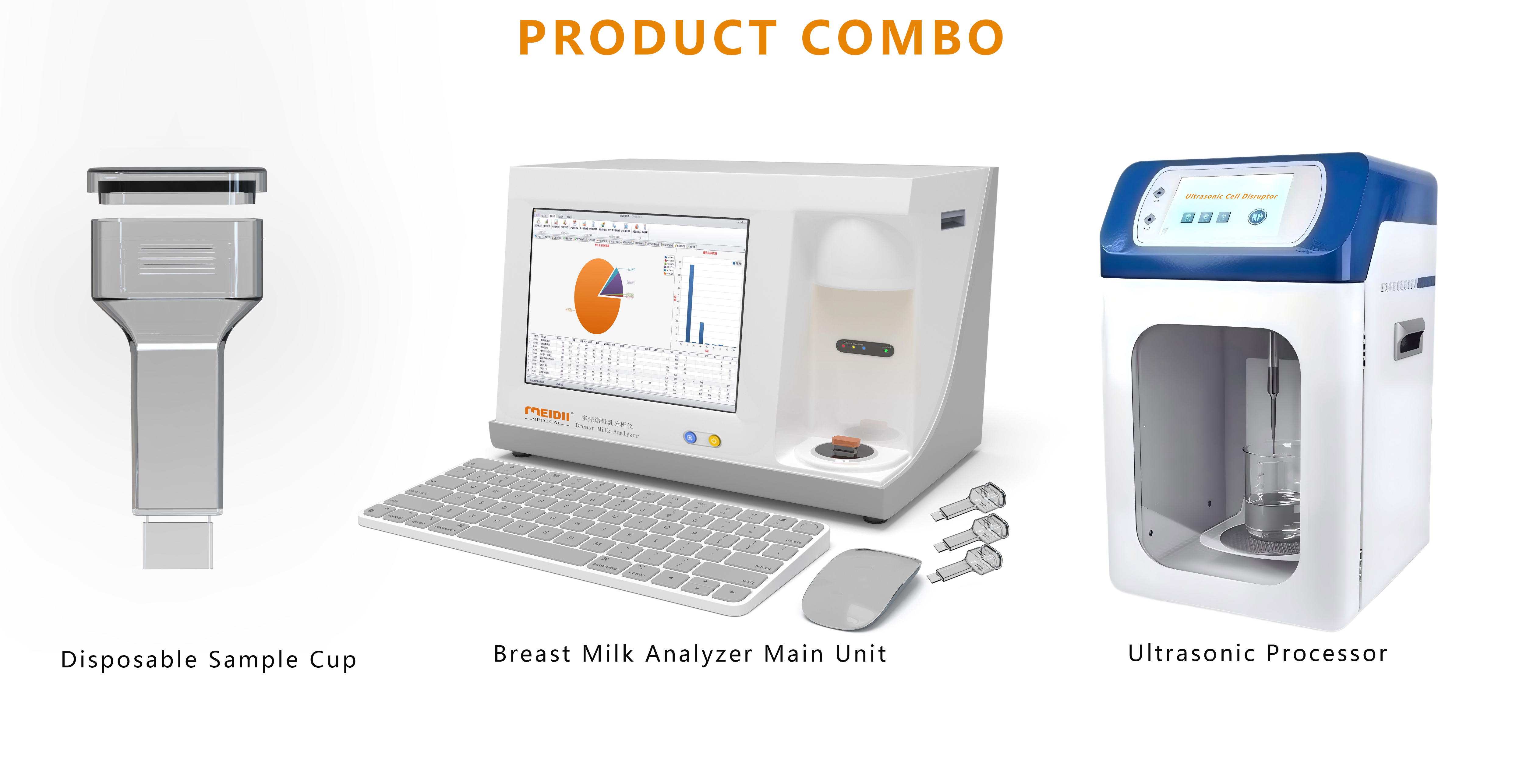

MEIDI Ultrasonic Processor

The MEIDI Ultrasonic Processor is specially designed for milk sample pretreatment in macronutrient analysis with the system. It adopts high-frequency ultrasonic technology to achieve rapid, simple and efficient homogenization of milk samples.

The MEIDI Ultrasonic Processor achieves high-quality milk homogenization through ultrasonic cavitation. Cavitation refers to the generation and instantaneous collapse of microbubbles triggered by pressure fluctuations. The implosion of these microbubbles produces powerful shock waves that break down coarse particles in the milk. The processor delivers a stable energy output of approximately 20 J/s per milliliter of milk sample.

In milk samples, cavitation effectively breaks large fat globules into fine, uniform micro-particles, allowing proteins to fully adsorb onto the surface of fat droplets. This significantly enhances the overall stability of the milk fat system. Furthermore, combining ultrasonic treatment with proper heating can greatly optimize homogenization efficiency and ensure more accurate analysis results.

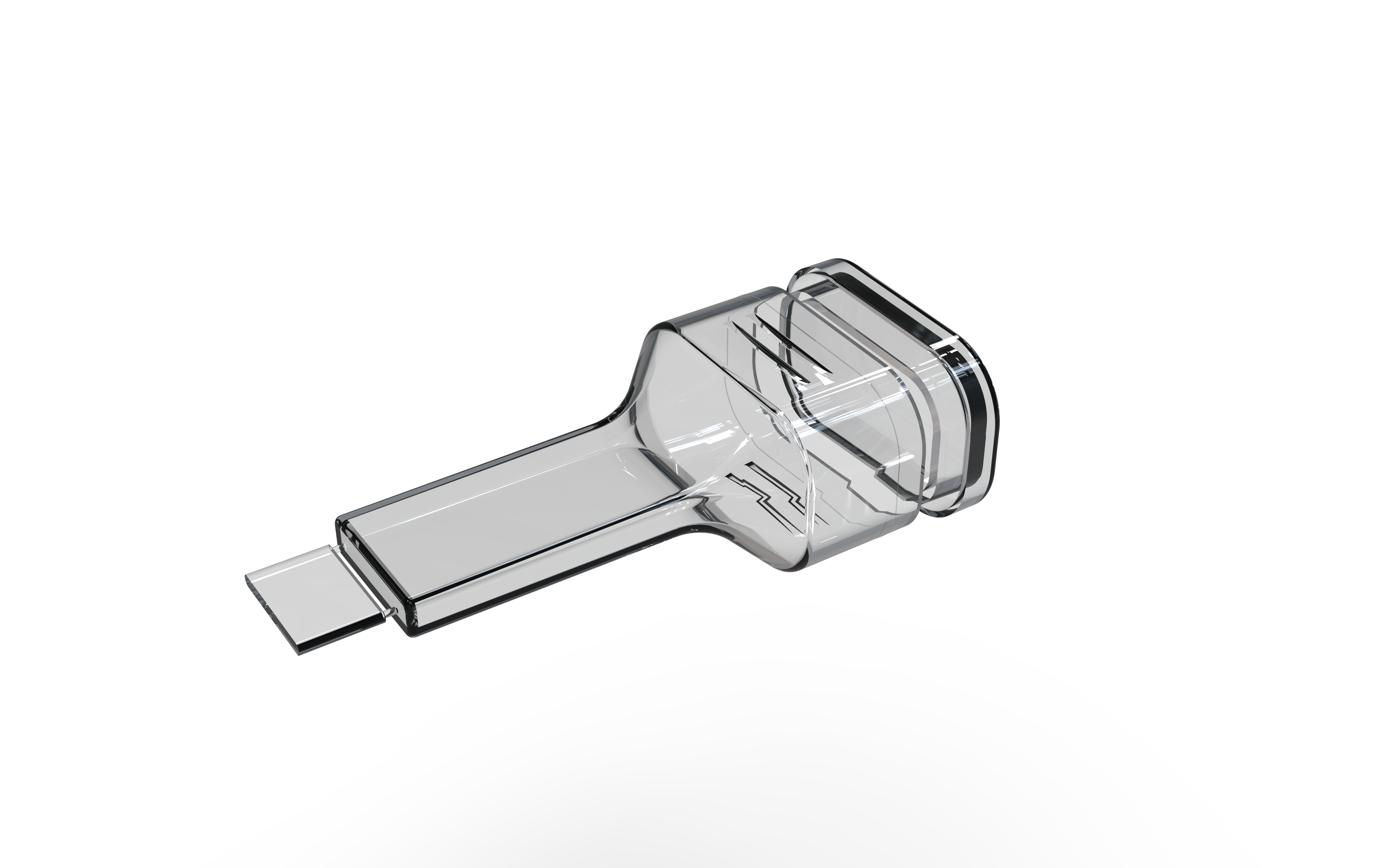

Material

Made of high-transparency acrylic (PMMA) material with smooth inner walls. It features excellent infrared spectral penetration and zero impurity interference, fully compatible with the infrared band detection principle of breast milk analyzers. BPA-free and chemically stable, the material does not react with breast milk samples at all, ensuring high accuracy and stability of test results.

Core Functions

1. Single-use Design, Zero Cross-Contamination

Disposable and independent for each test. Discard after use to completely avoid cross-contamination between samples, ensuring hygienic and safe detection.

2. Micro-sample Compatibility, Perfect Equipment Matching

Optimized for ultra-small 0.3mL breast milk samples, perfectly matching the infrared detection module of breast milk analyzers to support efficient and accurate testing.

3. Pipeline Isolation, Lower Maintenance & Longer Device Lifespan

All samples are held in the test cup without contacting the instrument’s internal pipelines. No repeated equipment cleaning is required. It fundamentally prevents pipeline blockage, residue and corrosion, reduces maintenance costs, and greatly extends the service life of the main analyzer unit.

4. High-precision Molding, Stable Detection

Precision one-piece molding with standard dimensions. It fits tightly and stably on the device without shaking or displacement during testing, ensuring stable and accurate infrared detection results.

5. High-transparency & Visual Observation

Superior light transmission enables clear visual observation of breast milk status, color and impurities for quick sample condition judgment.

Advanced Infrared Spectroscopy Technology Enables Accurate Analytical Results

The newly launched HW-5800B Breast Milk Analyzer utilizes cutting-edge medical device technology to deliver high-precision and highly stable breast milk composition analysis. Without the need for additional reagents or complex operations, this instrument accurately detects key indicators such as fat, protein, and lactose, making it an ideal breast milk analysis tool for healthcare professionals. The application of infrared spectroscopy makes the detection process non-invasive and highly efficient, establishing it as a vital device in modern newborn weight and nutrition management.

Fully Automated Operation, Simple and User-Friendly

Designed for efficiency and convenience, the analyzer features fully automated functions to eliminate human operational errors. From sample analysis to report generation, the process is seamlessly completed by the analyzer, ensuring a smooth workflow. Its intuitive user interface allows medical staff to become proficient quickly with minimal training, making it perfectly suited for healthcare settings that demand both efficiency and precision.

Comprehensive Detection of Breast Milk Nutrients

This breast milk analyzer can evaluate fat, protein, energy, and other key nutrients, helping healthcare professionals gain a comprehensive understanding of breast milk's nutritional composition and provide a scientific basis for infant feeding. Excelling in both clinical and research settings, it assists professionals in effectively monitoring and assessing the nutritional value of breast milk.

Portable Design, Suitable for Multiple Scenarios

The device balances portability and durability, with a lightweight construction facilitating easy movement and use across various locations such as hospitals, clinics, and research institutions. Its compact design is particularly suitable for environments with limited space or requiring flexible deployment. As a portable analyzer, it supports rapid on-site testing and delivers immediate reports, saving valuable time for infant nutrition decision-making.

International System Certifications

Certified by ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and ISO 45001 Occupational Health and Safety Management System.CE

Manufacturing Strength Data

30+ Patents:​ Holds over 30 product invention and technological patents, demonstrating innovative capability and industry leadership.

Global Reach:​ Products are exported to more than 40 countries and regions including Southeast Asia, Africa, and Europe, with international expansion steadily progressing.

Commitment to Sustainable Development

We integrate energy-saving and environmental protection concepts into the production process, ensuring our products are green and low-carbon, creating long-term value for customers and society through sustainable operations.

Customer Collaboration Process

We prioritize customer needs, providing full-cycle services from consultation, model selection, and customized solutions to production and after-sales support, ensuring smooth and efficient collaboration.

Global Service Capability

Leveraging a solid reputation and an extensive marketing network, we offer professional support to customers worldwide, guaranteeing reliable products and services no matter the location.

Let Advanced Technology Empower the Breast Milk Testing Process!
